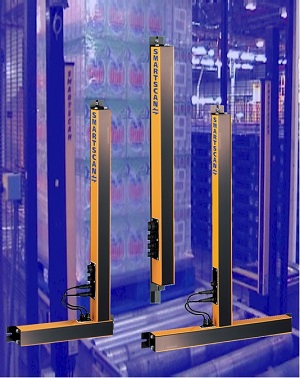

8K3/8K4 Series Safety Light Curtains
The 8K3/8K4 Series comprises of the Transmitter (Tx) and the Receiver (Rx) units with optional bolt on mute modules. An interface cable connects the Transmitter to the Receiver unit and the User cable provides the interface to the machine control panel. The system provides a fully integrated solution including cross-beam and parallel beam muting options all housed in a robust IP66 enclosure for harsh wet environments. In addition the 8K3/8K4 provides multiple beam options allowing the light curtain to be mounted closer to the danger point. Two, three and four beam models for safeguarding around the perimeter of a machine are included in the model range. These models have a scanning range of 4 - 10m. A selection of accessories including inductive loop control boxes, reset stations and mounting stands are also available.
Features
Configurable for both pallet infeed and outfeed applications
Two part safety system with fully integrated control functions
Heavy duty enclosures rated IP66 for harsh, wet, and dusty environments
Mute enable input for increased safety integrity
Safety output relay contacts (dual channel)
Status output relay contact
Safety monitored guard override facility
Mute lamp output
Diagnostic & status indicators
External device monitoring (EDM)
Integrated monitored mute beacon option
Application specific software options
Solutions for cold store applications
Simple installation and alignment
1 year manufacturers warranty
Applications
Palletisers & De-palletisers
Pallet lifts
Robotic Handling systems
Stackers and de-stackers
Pallet strapping machines
Pallet shrink-wrapping machinery
Stretch wrapping machines
Automatic end-of-line packaging machinery where conveyor access for palletised loads is required into and out of the 'Danger Zone

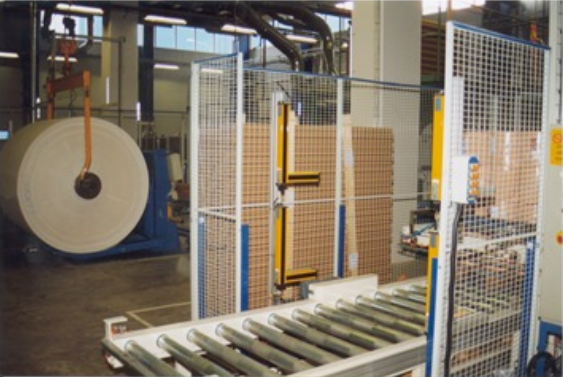

The 8K3 and 8K4 series are the latest product series in 25 years
of supplying pallet entry/exit solutions. Our solutions are used
in a variety of end of line packaging applications and across a
range of industrial sectors. The Smartscan 8K3 and 8K3 Plus
models offer the complete solution for safeguarding end-of-line
packaging machines.

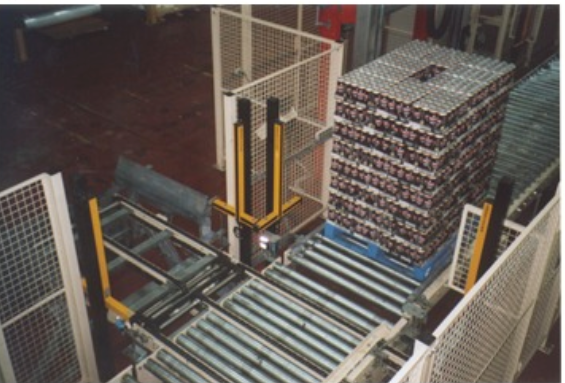

The system provides a ‘plug & play’ self-muting guarding system

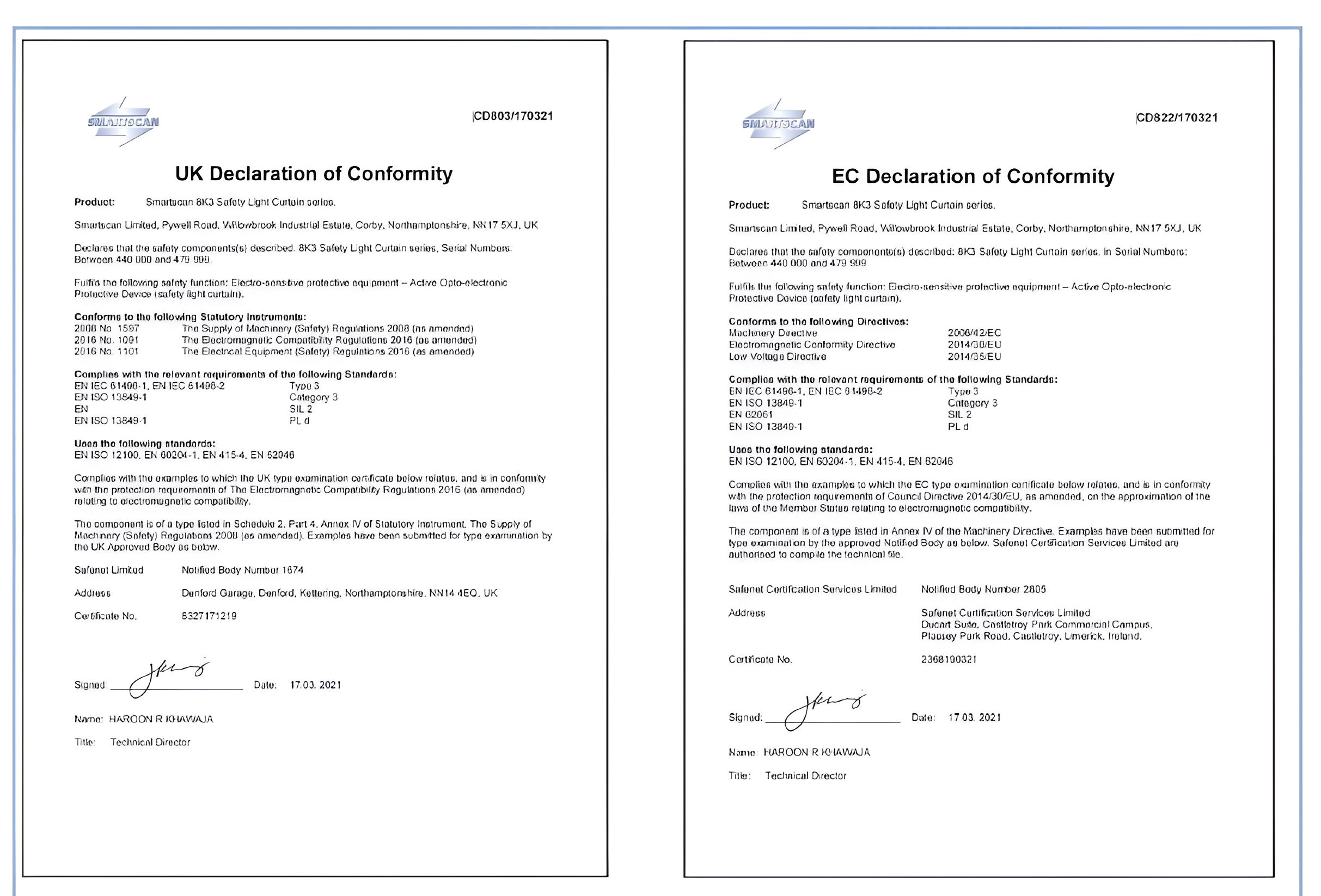

in full compliance with IEC 62046. The system offers both
cross-beam and parallel beam muting options for pallet
entry/exit and exit only positions. The Parallel beam can also
be used for positions between danger zones where operators could
potentially try and access the danger zones from either
direction as per the requirements of IEC 62046.
The systems provide PL d and PL e safety ratings with whole body
and hand detection options accommodating a range of different
application requirements.

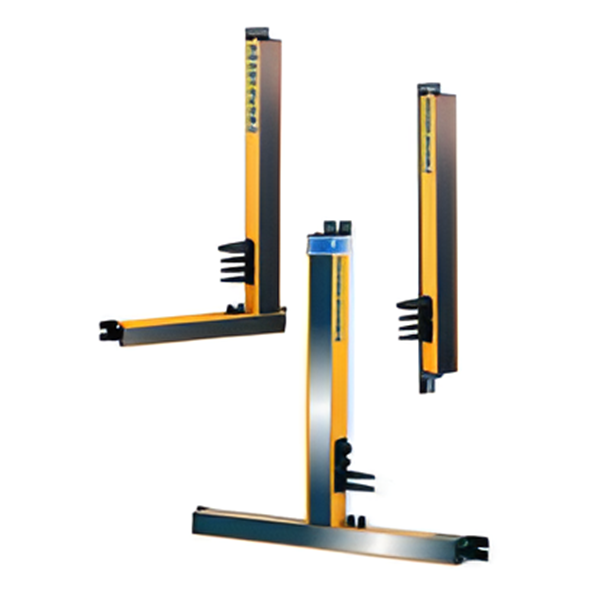

The system uses the same cables as the older 8000 series making
changeover/ upgrade very simple.

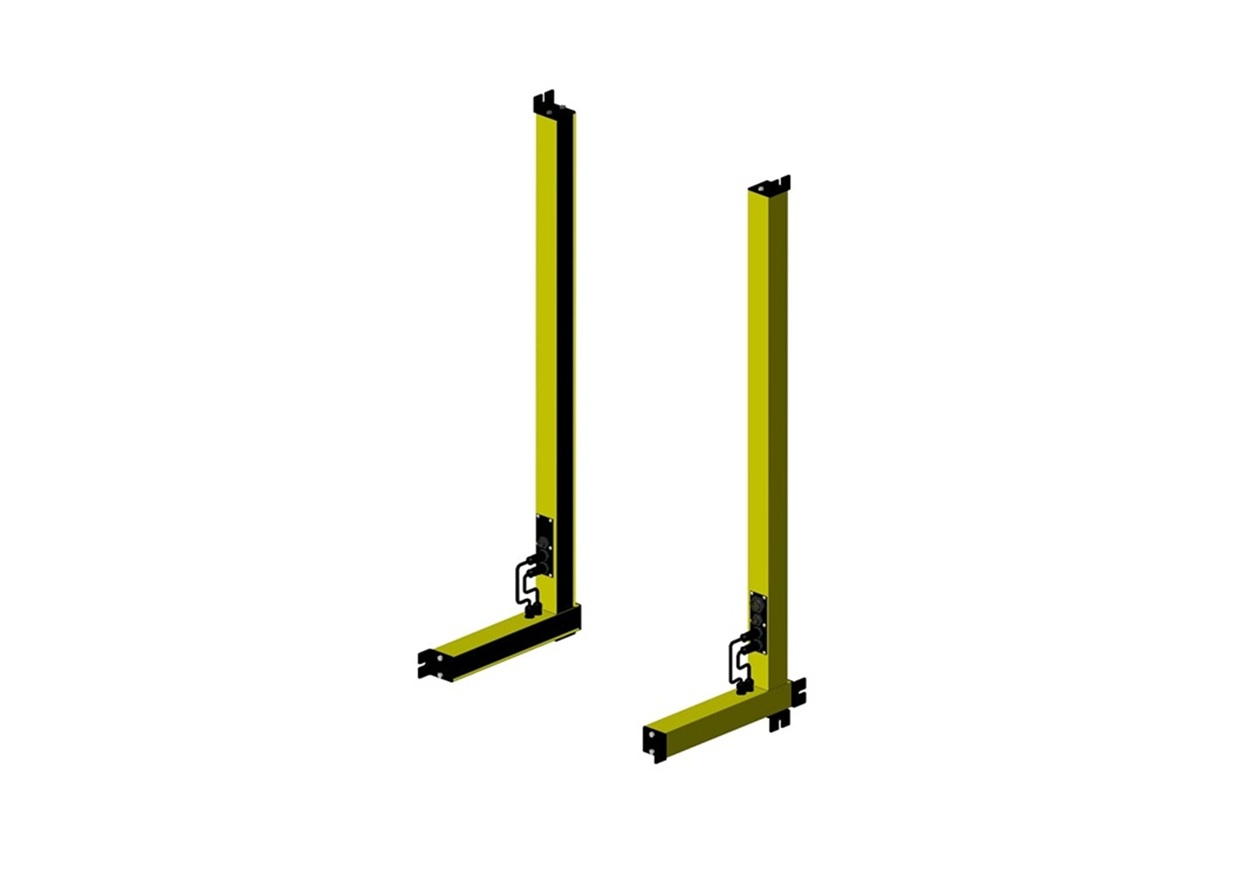

8K3 series
Perimeter Safety Light Curtains
| Model | Description |
|---|---|
| 087E450 | Remote Safety Beam Control Station |
| 087-451 | 8K3 series TX & RX Remote Safety Single Beam (Per Set), 0.5 - 5m range |
| 087E501 | 8K3 series safety light curtain with Mirror Unit, 1 beam, 572mm length, 0.5 - 4m range |
| 087E502 | 8K3 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 0.5m - 5m range |
| 087E903 | 8K3 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 0.5m - 5m range |
| 087E1204 | 8K3 series safety light curtain, 4 beams @ 400mm beam pitch, 1272mm length, 0.5m - 5m range |
Long Range Perimeter Safety Light Curtains
| Model | Description |
|---|---|
| 1087-451 | 8K3 series TX & RX Remote Safety Single Beam (Per Set), 4m - 40m range |
| 1087E502 | 8K3 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 4m - 40m range |
| 1087E903 | 8K3 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 4m - 40m range |
| 1087E1204 | 8K3 series safety light curtain, 4 beams @ 400mm beam pitch, 1272mm length, 4m - 40m range |
Safety Light Curtains Fitted with Monitored Mute Beacons
| Model | Description |
|---|---|
| 187E501 | 8K3 series safety light curtain with Mirror Unit, 1 beam, 572mm length, 0.5 - 4m range with Blue Beacon |
| 187E502 | 8K3 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 0.5m - 5m range with Blue Beacon |
| 187E903 | 8K3 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 0.5m - 5m range with Blue Beacon |
| 187E1204 | 8K3 series safety light curtain, 4 beams @ 400mm beam pitch, 1200mm length, 0.5m - 5m range with Blue Beacon |
Orange, red and green beacon colours also available.
Long Range Perimeter Safety Light Curtains with Monitored Mute Beacons
| Model | Description |
|---|---|
| 1187E502 | 8K3 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 4m - 40m range with Blue Beacon |
| 1187E903 | 8K3 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 4m - 40m range with Blue Beacon |
| 1187E1204 | 8K3 series safety light curtain, 4 beams @ 400mm beam pitch, 1200mm length, 4m - 40m range with Blue Beacon |
Orange, red and green beacon colours also available.
Mute Modules
| Model | Description |
|---|---|

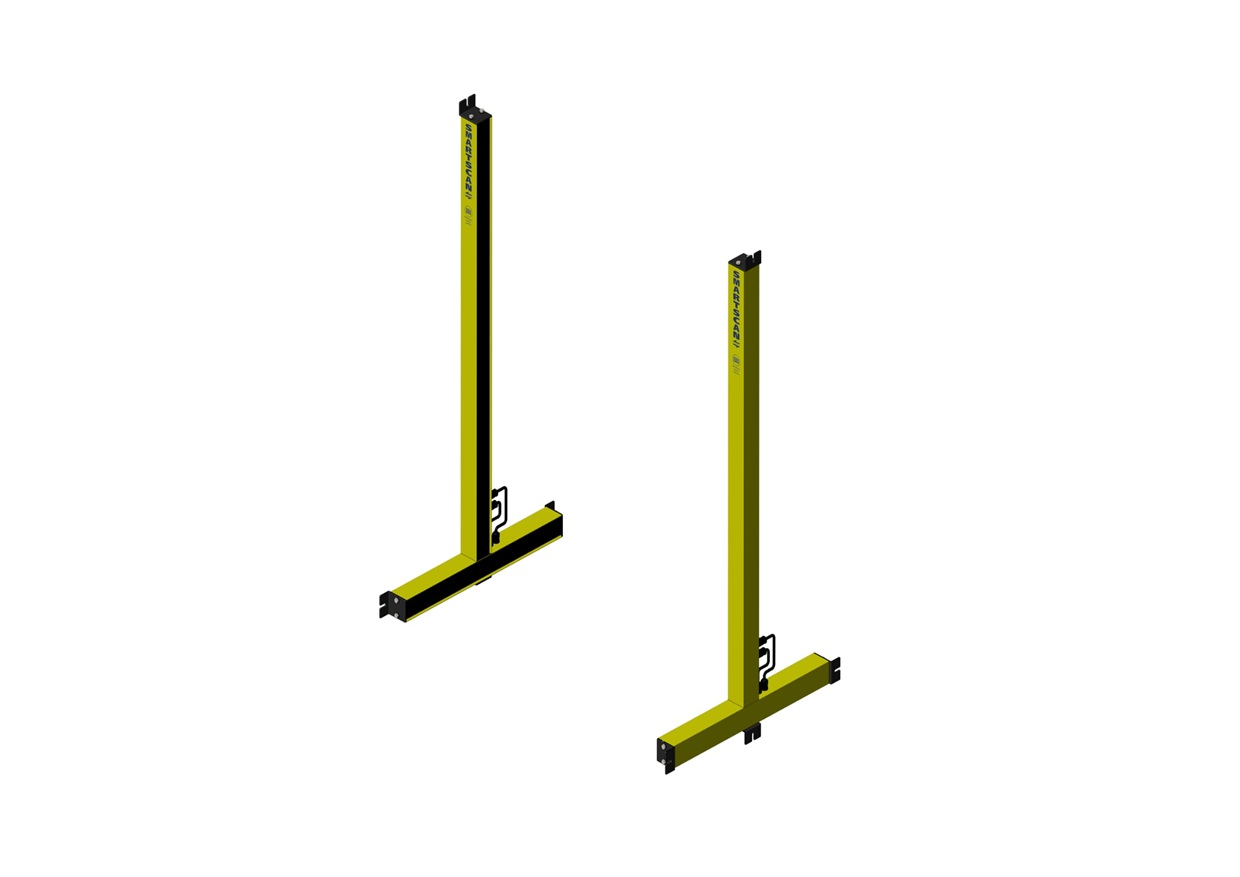

| 087-007 | 8K3 series Entry & Exit 'T' Cross-beam 'Type 1' Mute Module (Tx & Rx), 500mm length, range 1.25m - 3.5m |
| 087-008 | 8K3 series Entry & Exit 'T', Cross-beam 'Type 2' Mute Module (Tx & Rx), 500mm length, range 1.25m - 3.5m |
| 087-011 | 8K3 Entry & Exit 'T' Parallel beam (Timing Controlled) Mute Module (Tx & Rx), 875mm length, range 1.25m - 3.5m |
| 087-012 | 8K3 Entry & Exit 'T' Parallel beam (Sequential) Mute Module (Tx & Rx), 4 beams, 875mm length, range 1.25m - 3.5m |

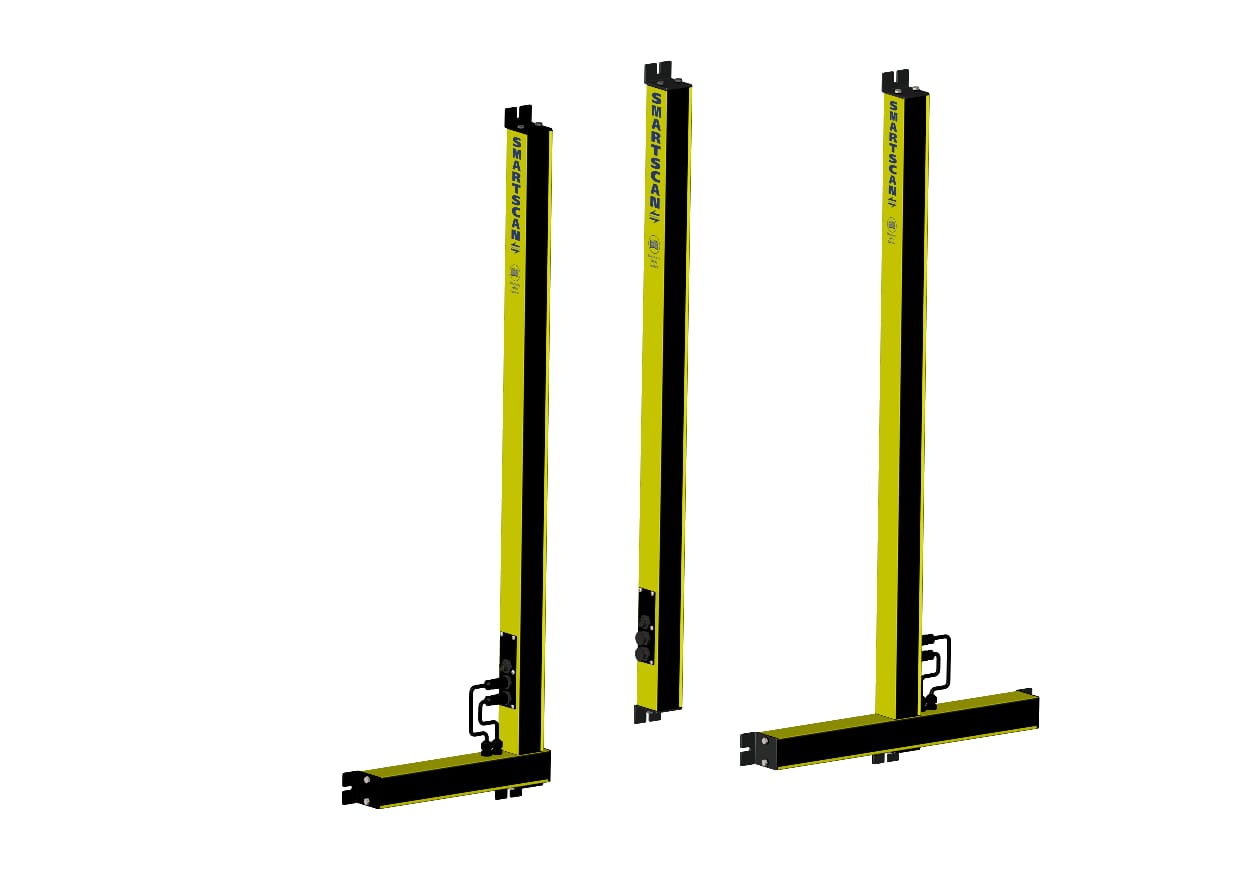

| 087-004 | 8K3 series Exit 'L' Cross-beam 'Type 2' Mute Module (Tx & Rx), 325mm length, range 1.25m - 3.5m |

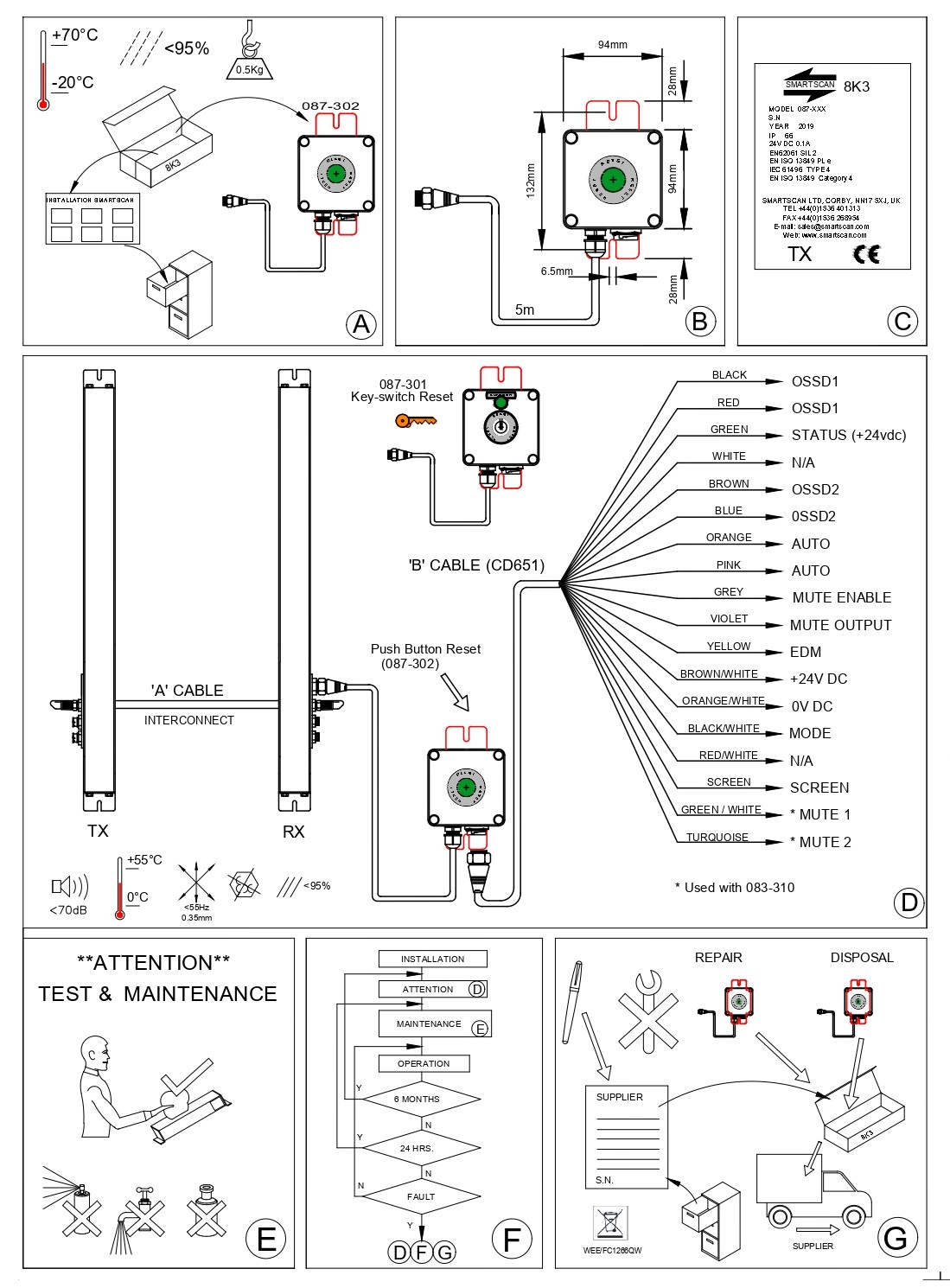

Cables
| Model | Description |
|---|---|
| 084-005 | Cable 'A' Interconnect - 5m |
| 084-010 | Cable 'A' Interconnect - 10m |
| 084-221 | Cable 'A' Interconnect Extension - 20m |
| 084-105 | Cable 'B' User - 5m |
| 084-210 | Cable 'B' User Extension - 10m |
| 084-220 | Cable 'B' User Extension - 20m |
| 083-310 | Rx Cable Junction (External Mute Connections) |
| 084-360 | 5m Inductive Loop Mute Connection Cable |
Accessories
| Model | Description |
|---|---|
| 109-016C | 8K3 series Polarised Retro-Reflective Photocell Muting Kit |
| 126-054 | Reflector Mounting Bracket |
| 087-301 | Activate Key Switch - Restart / Override & Trip Indicator (cross beam 24v) |
| 087-302 | Activate Push Button - Restart / Override & Trip Indicator (cross beam 24v) |
| Perimeter Safety Light Curtains | |
| Model | Description |
|---|---|
| 080E450 | Remote Safety Beam Control Station |
| 080-451 | 8K4 series TX & RX Remote Safety Beams (Per Set), 0.5 - 5m range |
| 080E501 | 8K4 series safety light curtain with Mirror Unit, 1 beam, 572mm length, 0.5 - 4m range |
| 080E502 | 8K4 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 0.5m - 5m range |
| 080E903 | 8K4 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 0.5m - 5m range |
| 080E1204 | 8K4 series safety light curtain, 4 beams @ 400mm beam pitch, 1272mm length, 0.5m - 5m range |
| Long Range Perimeter Safety Light Curtains | |
| Model | Description |
| 1080-451 | 8K4 series TX & RX Remote Safety Beams (Per Set), 4m - 40m range |
| 1080E502 | 8K4 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 4m - 40m range |
| 1080E903 | 8K4 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 4m - 40m range |
| 1080E1204 | 8K4 series safety light curtain, 4 beams @ 400mm beam pitch, 1272mm length, 4m - 40m range |
| Safety Light Curtains Fitted with Monitored Mute Beacons | |
| Model | Description |
| 180E501 | 8K4 series safety light curtain with Mirror Unit, 1 beam, 572mm length, 0.5 - 4m range with Blue Beacon |
| 180E502 | 8K4 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 0.5m - 5m range with Blue Beacon |
| 180E903 | 8K4 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 0.5m - 5m range with Blue Beacon |
| 180E1204 | 8K4 series safety light curtain, 4 beams @ 400mm beam pitch, 1200mm length, 0.5m - 5m range with Blue Beacon |
| Long Range Perimeter Safety Light Curtains with Monitored Mute Beacons | |
| Model | Description |
| 1180E502 | 8K4 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, 4m - 40m range with Blue Beacon |
| 1180E903 | 8K4 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, 4m - 40m range with Blue Beacon |
| 1180E1204 | 8K4 series safety light curtain, 4 beams @ 400mm beam pitch, 1200mm length, 4m - 40m range with Blue Beacon |
| Mute Modules | |
| Model | Description |
| 080-007 | 8K4 series Entry & Exit 'T Cross-beam 'Type 1' Mute Module (Tx & Rx), 500mm length, range 1.25m - 3.5m |
| 080-008 | 8K4 series Entry & Exit 'T Cross-beam 'Type 2' Mute Module (Tx & Rx), 500mm length, range 1.25m - 3.5m |
| 080-011 | 8K4 Entry & Exit 'T Parallel beam (Timing Controlled) Mute Module (Tx & Rx), 875mm length, range 1.25m - 3.5m |
| 080-012 | 8K4 Entry & Exit 'T Parallel beam (Sequential) Mute Module (Tx & Rx), 4 beams, 875mm length, range 1.25m - 3.5m |
| 080-014 | 8K4 series Exit 'L' Cross-beam 'Type 2' Mute Module (Tx & Rx), 325mm length, range 1.25m - 3.5m |
| Cables | |
| Model | Description |
| 084-005 | Cable 'A' Interconnect - 5m |
| 084-221 | Cable 'A' Interconnect Extension - 20m |
| 084-220 | Cable 'B' User - 5m |
| 084-221 | Cable 'B' User Extension - 10m |
| 084-320 | Cable 'B' User Extension - 20m |
| 083-310 | Rx Cable Junction (External Mute Connections) |
| 084-360 | 5m Inductive Loop Mute Connection Cable |
| Accessories | |
| Model | Description |
| 109-016C | 8K4 series Polarised Retro-Reflective Photocell Muting Kit |
| 126-054 | Reflector Mounting Bracket |
| 087-302 | Activate Key Switch - Restart / Override & Trip Indicator (cross beam 24v) |
| 087-302 | Activate Push Button - Restart / Override & Trip Indicator (cross beam 24v) |

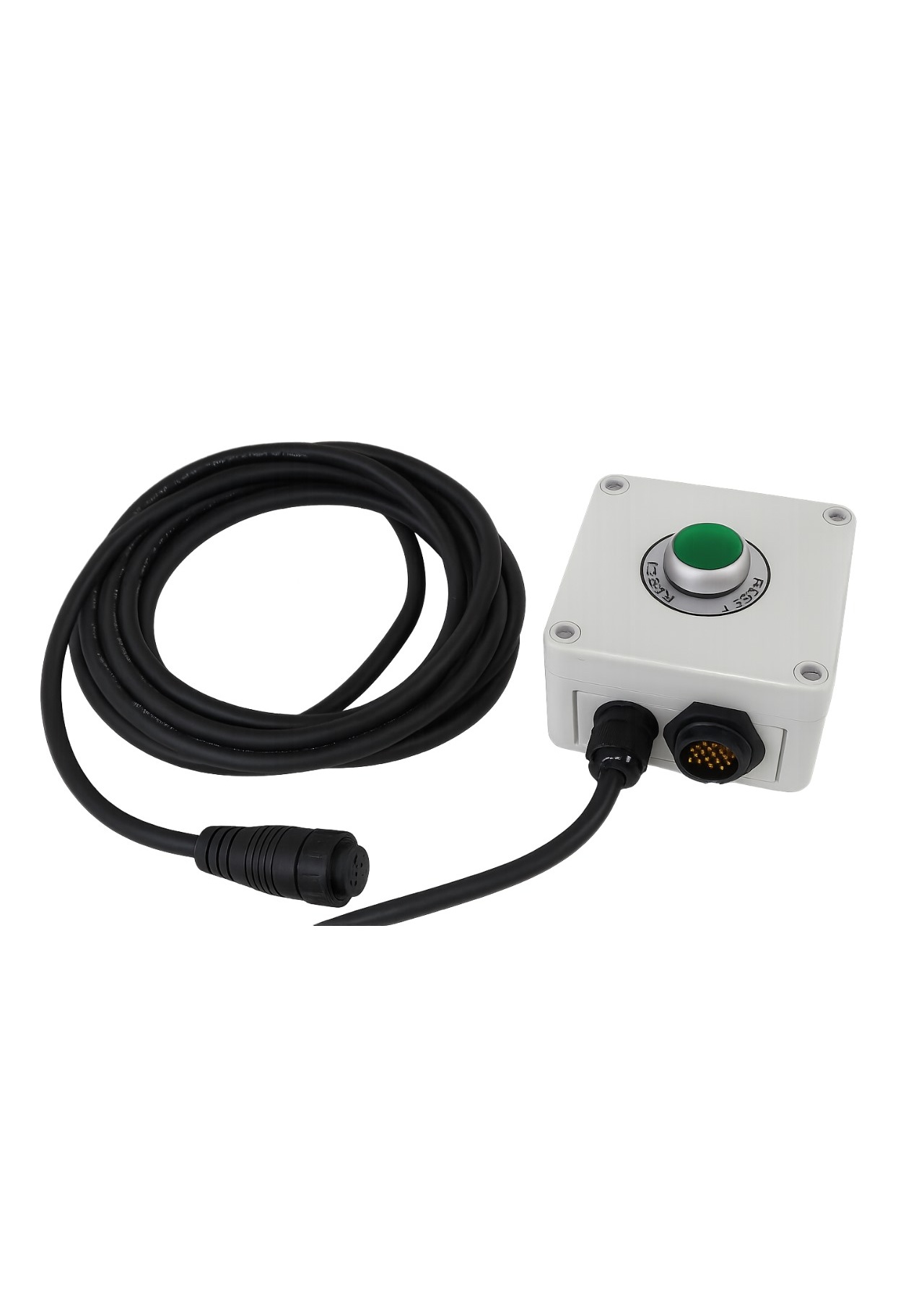

Push Button Reset (087-302)
