Safety Limit Switches (Stainless Steel)

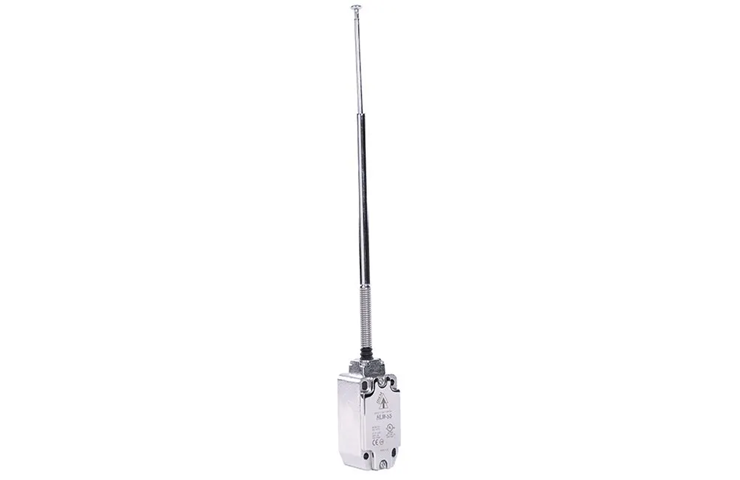

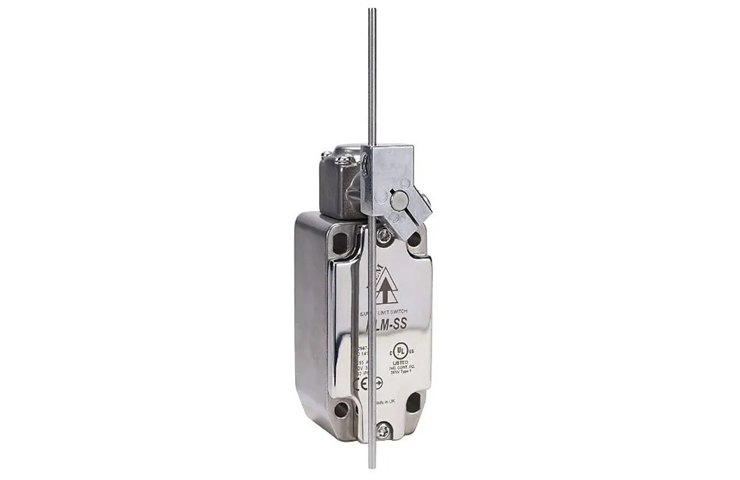

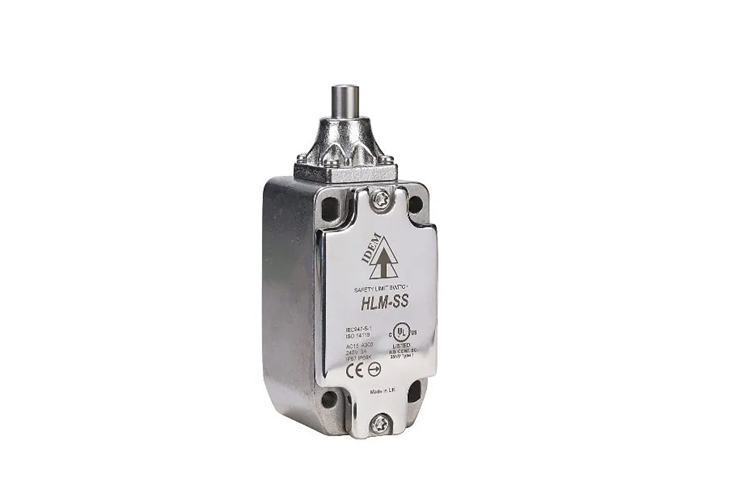

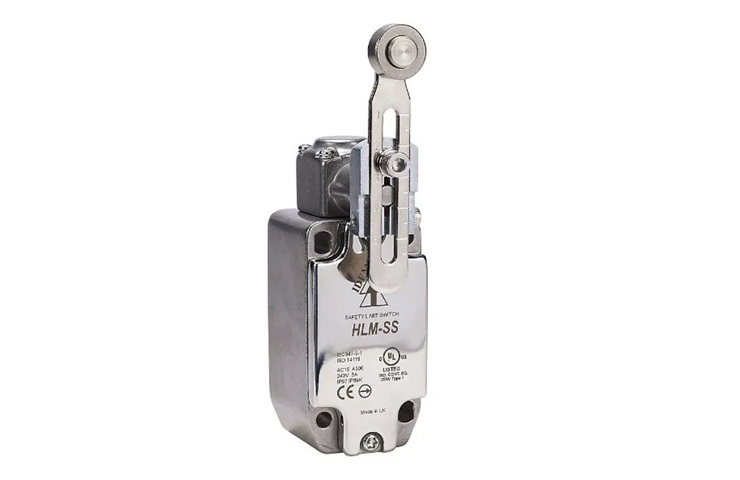

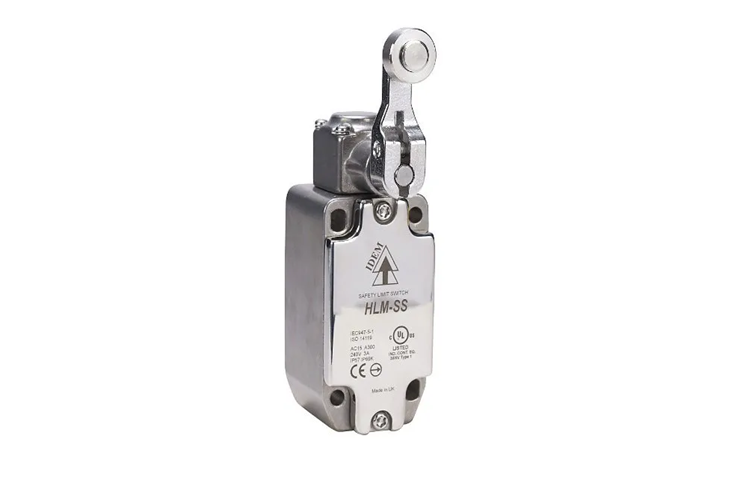

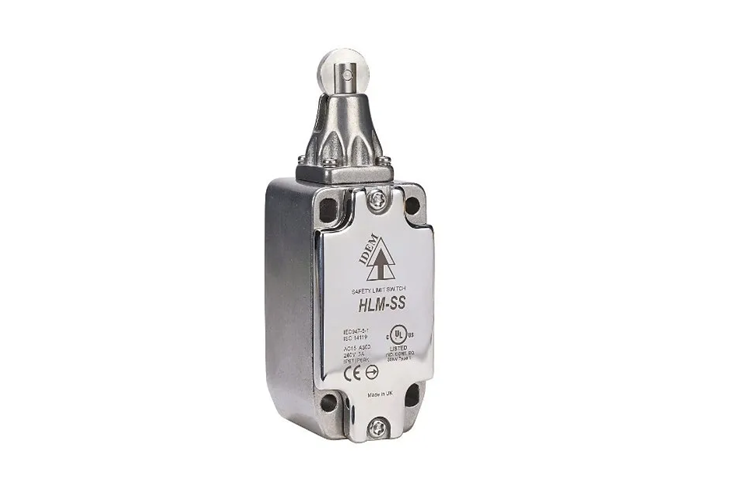

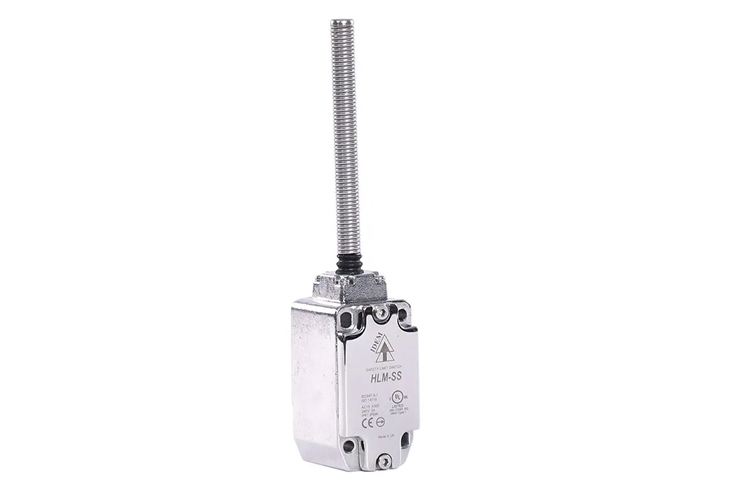

Our HLM-SS Safety Limit Switches have stainless steel 316 bodies and designed to be mounted for position sensing of moving applications e.g., Guard doors, conveyors, machine beds, elevators. Options include Roller Plunger, Short Roller Lever, Pin Plunger, Lever Arm – adjustable, Roller Lever – adjustable, Spring Lever and Telescopic Roller Lever – adjustable. All models are available with either slow or snap acting contacts. Operation of the switches is achieved by a sliding actuation of the moving object to cause deflection of the switch plungers or levers.
For safety applications it is important that the moving object does not pass completely over the
switch actuators to either cause damage to the actuator or allow it to return to its original
position.
For the harsh environments like Food Processing, Pharmaceutical and Petro-Chemical Industries
the Stainless Steel 316 range offers protection up to IP69K for use in high pressure chemical
cleaning or CIP/SIP applications. The IP69K enclosure protection (maintained by a double seal
lid gasket) and can be high pressure hosed with detergent up to +80C and 100psi.
