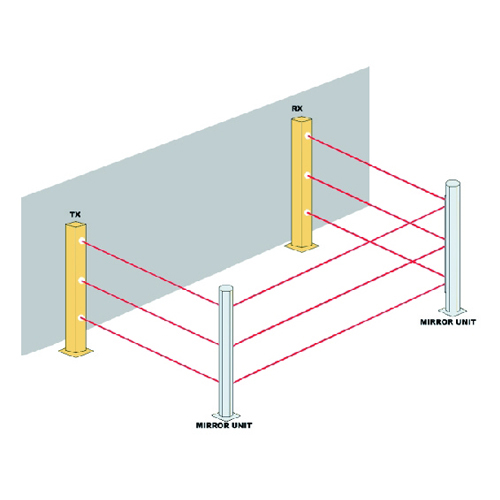

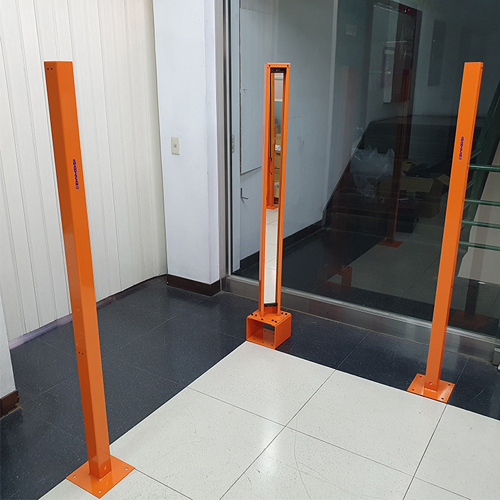

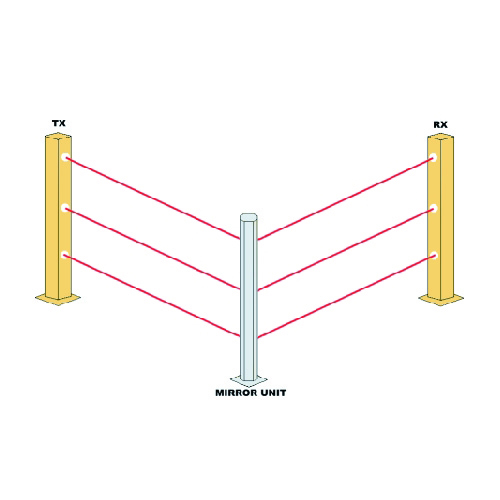

Mirror reflection safety protection

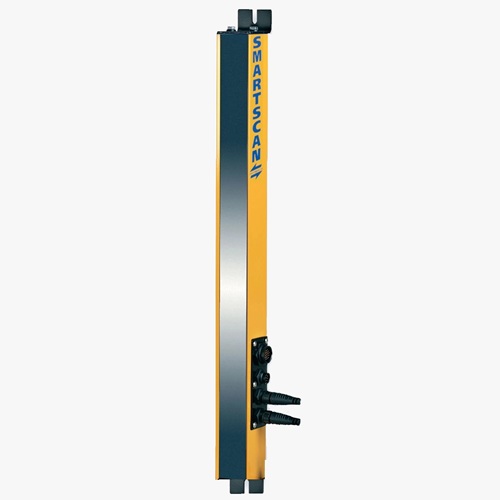

The 8K3/8K4 Series safety light guard comprises of the Transmitter (Tx) and the Receiver (Rx) units with optional bolt on mute modules. An interface cable connects the Transmitter to the Receiver unit and the User cable provides the interface to the machine control panel. The system provides a fully integrated solution including cross-beam and parallel beam muting options all housed in a robust IP66 enclosure for harsh wet environments. Two, three and four beam models for safeguarding around the perimeter of a machine are included in the model range. These models have a scanning range of 4 - 40m.
Features
Perimeter guarding 4 - 40m scanning range (model dependant)
Configurable for both pallet infeed and outfeed applications
Two part safety system with fully integrated control functions
Heavy duty enclosures rated IP66 for harsh, wet, and dusty environments
Mute enable input for increased safety integrity
Safety output relay contacts (dual channel)
Status output relay contact
Safety monitored guard override facility
Mute lamp output
Diagnostic & status indicators
External device monitoring (EDM)
Integrated monitored mute beacon option
Application specific software options
Solutions for cold store applications
Simple installation and alignment
1 year manufacturers warranty
Safety integrity classification EN 13849-1-PL d, EN 954-1 Category3
Applications
Palletisers & De-palletisers
Pallet lifts
Robotic Handling systems
Stackers and de-stackers
Pallet strapping machines
Pallet shrink-wrapping machinery
Stretch wrapping machines
Automatic end-of-line packaging machinery where conveyor access for palletised loads is required into and out of the 'Danger Zone
| Specifications | |
|---|---|
| Number of beams | 1 - 4 |
| Detection zone | 500, 600, 900 and 1200mm |
| Range, Cross-beam muting, Parallel-beam muting |
4 - 40m (model dependent) 1.25 - 3.5m 0.5 - 3.5m |
| Light type | Infrared 880nm |
| Response time | 40ms |
| Operating temperature | 0 °C to +50 °C |
| Enclosure rating | IP66 |
| Enclosure (H x W x D) | H x 50 x 57mm |
| Status indicators | Status & Diagnostic LEDs |
| Status indication |
Transmitter (TX) F9 Red LED on = beam(s) transmitting Receiver (RX) F10 Green LED on = Guard clear F11 Yellow LED on = Mute 1 clear F12 Yellow LED on = Mute 2 clear F13 Red LED on = Guard blocked F16 Yellow LED on = Status relay off F17 Yellow LED on = Mute on F15 Red LED on = Safety outputs off F14 Green LED on = Safety outputs on |
| Power supply requirement | 24V DC 2A ± 10% |
| Current consumption | 250mA |
| Connection | Circular, bayonet locking IP68 |
| Classification |
BS EN 61496-1, BS IEC 61496-2 Type 3, BS EN 954-1 Category 3, EN ISO 13849-1 PL d, BS EN 61508 SIL 2 |
| Warranty | 1 Year |
| External Device Monitoring (EDM) | +24V DC = on |
| Activate | Combined restart and override. On = +24V DC |
| Muting | Two circular, bayonet locking connectors. One for each independent muting channel, Mute 1 (M1) and M |
| Mute enable | 3rd mute channel. On = +24V DC |
| Mode select | Cross-beam mute. On = 0V DC Parallel-beam mute. On = +24V DC |
| Safety outputs | 2 x N/O fail-safe switching contacts (OSSD 1 & OSSD 2), each rated at 110V, 2A. |
| Mute output | Electronic output. 0V DC = Mute on |
| Product Conformity |
The 8K3/8K4 series has passed Type Examination from
European Notified Body, SAFENET to the Machinery
Directive. Certification provides users with an assurance that the 8K3/8K4 series system meets all relevant legislative safety requirements. Together with our ISO 9001:2008 certification full confidence can be placed in the quality, reliability and above all the safety of Smartscan equipment. |
8K3 Series
Long Range Perimeter Safety Light Curtains
| Product Code | Description | Range |
|---|---|---|
| 1087-451 | 8K3 series TX & RX Remote Safety Single Beam (Per Set) | 4m - 40m |
| 1087E502 | 8K3 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length | 4m - 40m |
| 1087E903 | 8K3 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length | 4m - 40m |
| 1087E1204 | 8K3 series safety light curtain, 4 beams @ 400mm beam pitch, 1272mm length | 4m - 40m |
Long Range Perimeter Safety Light Curtains with Monitored Mute Beacons
| Product Code | Description | Range |
|---|---|---|
| 1180E502 | 8K4 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length, | 4m - 40m |
| 1180E903 | 8K4 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length, | 4m - 40m |
| 1180E1204 | 8K4 series safety light curtain, 4 beams @ 400mm beam pitch, 1200mm length, | 4m - 40m |
8K4 Series
Long Range Perimeter Safety Light Curtains
| Product Code | Description | Range |
|---|---|---|
| 1080-451 | 8K4 series TX & RX Remote Safety Beams (Per Set) | 4m - 40m |
| 1080E502 | 8K4 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length | 4m - 40m |
| 1080E903 | 8K4 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length | 4m - 40m |
| 1080E1204 | 8K4 series safety light curtain, 4 beams @ 400mm beam pitch, 1272mm length | 4m - 40m |
Long Range Perimeter Safety Light Curtains with Monitored Mute Beacons
| Product Code | Description | Range |
|---|---|---|
| 1180E502 | 8K4 series safety light curtain, 2 beams @ 500mm beam pitch, 572mm length | 4m - 40m |
| 1180E903 | 8K4 series safety light curtain, 3 beams @ 450mm beam pitch, 972mm length | 4m - 40m |
| 1180E1204 | 8K4 series safety light curtain, 4 beams @ 400mm beam pitch, 1200mm length | 4m - 40m |

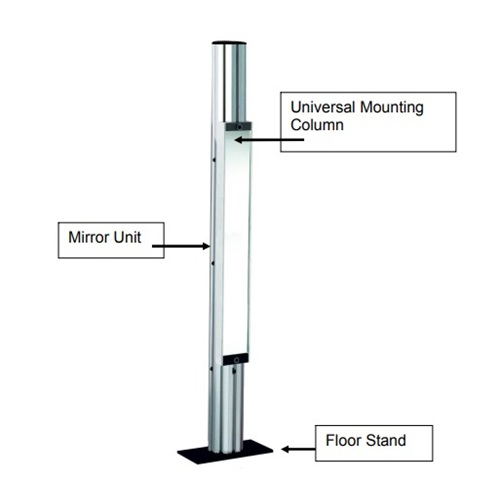

Mirror System - Floor Mount
Includes: Mirror Unit, Mounting Column and Floor Stand
Mirror Units (Must be 100mm longer than the light curtain's detection zone/height)
| Part No. | Dimensions |
|---|---|
| 044-252 | 600mm x 110mm |
| 044-279 | 700mm x 110mm |
| 044-274 | 800mm x 110mm |
| 044-249 | 900mm x 110mm |
| 044-243 | 1000mm x 110mm |
| 044-298 | 1100mm x 110mm |
| 044-250 | 1200mm x 110mm |
| 044-299 | 1300mm x 110mm |
| 044-253 | 1400mm x 110mm |
| 044-297 | 1500mm x 110mm |
| 044-254 | 1600mm x 110mm |
| 044-256 | 1700mm x 110mm |
| 044-269 | 1800mm x 110mm |
| 044-255 | 1900mm x 110mm |
Mounting Columns
| Part No. | Description |
|---|---|
| 044-256 | 1.1m aluminium mirror universal mounting column |
| 044-257 | 1.3m aluminium mirror universal mounting column |
| 044-273 | 1.4m aluminium mirror universal mounting column |
| 044-340 | 1.5m aluminium mirror universal mounting column |
| 044-258 | 1.6m aluminium mirror universal mounting column |
| 044-260 | 1.7m aluminium mirror universal mounting column |
| 044-247 | 1.8m aluminium mirror universal mounting column |
| 044-261 | 1.9m aluminium mirror universal mounting column |
| 044-262 | 2.0m aluminium mirror universal mounting column |
Floor Stand
| Part No. | Description |
|---|---|
| 130-112 | Mirror Floor Stand |
Mirror System - Bracket Mount
| Part No. | Dimensions / Description |
|---|---|
| 063-384 | 300mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-386 | 400mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-388 | 500mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-390 | 600mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-391 | 700mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-393 | 800mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-395 | 900mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-397 | 1000mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-399 | 1100mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-401 | 1200mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-403 | 1300mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-405 | 1400mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-407 | 1500mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-409 | 1600mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-411 | 1700mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-413 | 1800mm x 39mm wide mirror unit with swivel mounting bracket |
| 063-413 | 1900mm x 39mm wide mirror unit with swivel mounting bracket |
