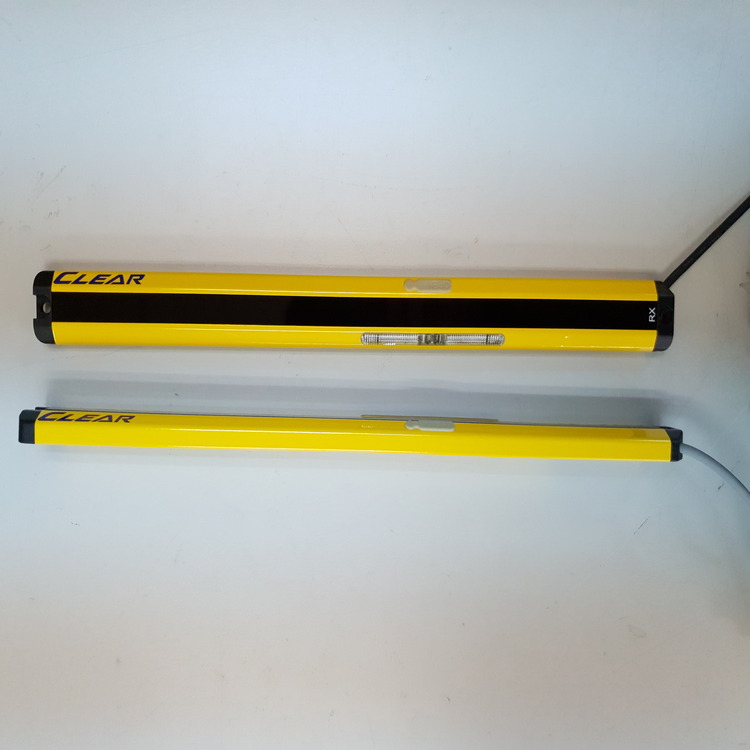

M Series
Features
Various types: 25mm (Unextendable), 10mm, 20mm, 40mm
Detection zone: 100mm ~ 940mm
Highly-Visible Indicator light (only MA series)
Two frequency options (FREQ A and FREQ B) (only MA series)
Provide NPN or PNP selection
Easy installation and calibration
Quality and stability, price concessions
Applications
Parts Detection
Picking Systems
Profile Checking
Machine Protection
Presence Sensing
Product Counting
Elevators and Automatic Doors
Loading Bays
People Monitoring
Security Systems
| GENERAL SPECIFICATIONS | 25mm | 10mm | 20mm | 40mm |
|---|---|---|---|---|
| Detection zone | 100mm | 100mm ~ 540mm | 140mm ~ 940mm | 120mm ~ 920mm |
| Operating distance | 0.3m to 3m (5m) | |||
| Reaction time | 20msec (It does not include relay switch time) | |||
| Classification | CE LVD ; No safety certification (do not use in dangerous equipment) | |||
| Power supply | 24VDC ± 20% | |||
| Power consumption | Basic 40mA ; 8mA more for each axis, up to 400mA | |||

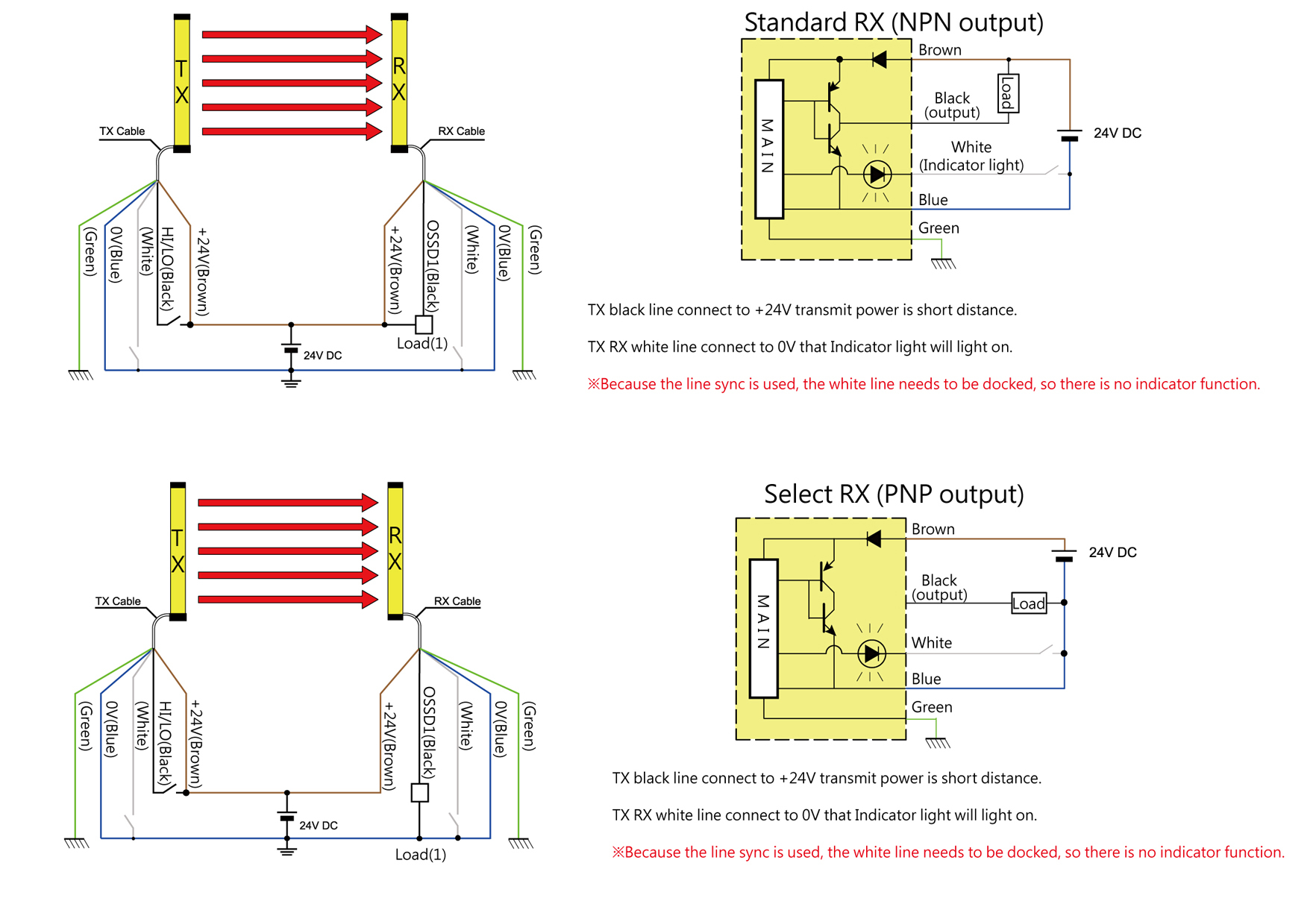

| Output mode | One set can be set to NPN or PNP (24V 20mA ; 0V 40mA) | |||
| Frequency | FREQ A (standard) or FREQ B (select) | |||
| Indicator light | Flashing or steady | |||
| Appearance |

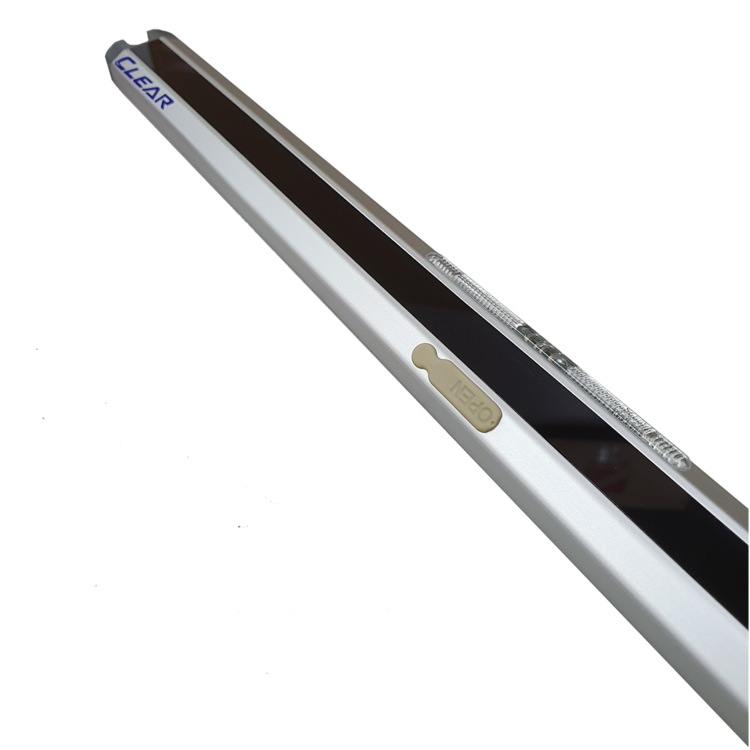

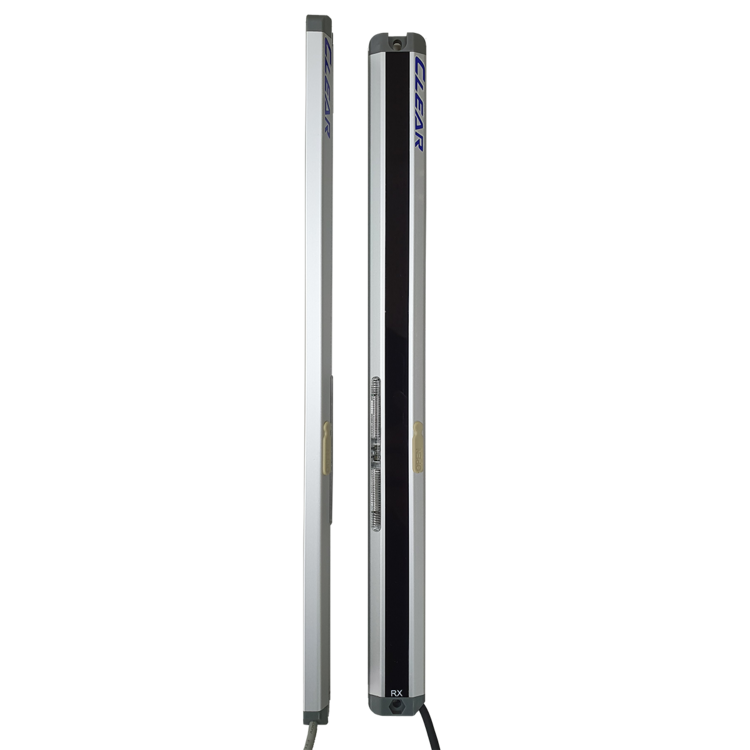

Aluminum ; Silver anode treatment (standard)

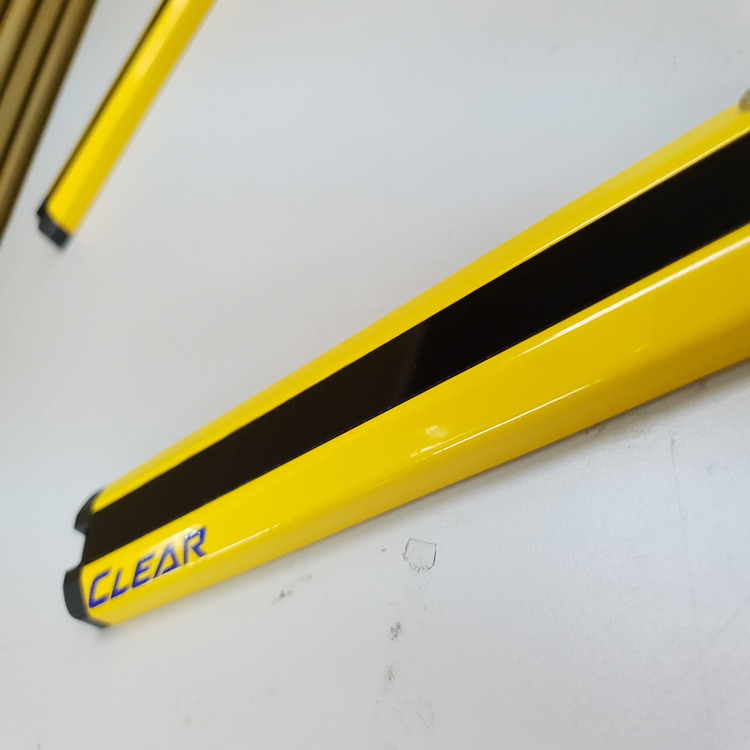

Aluminum ; Orange anode treatment (select) |
|||

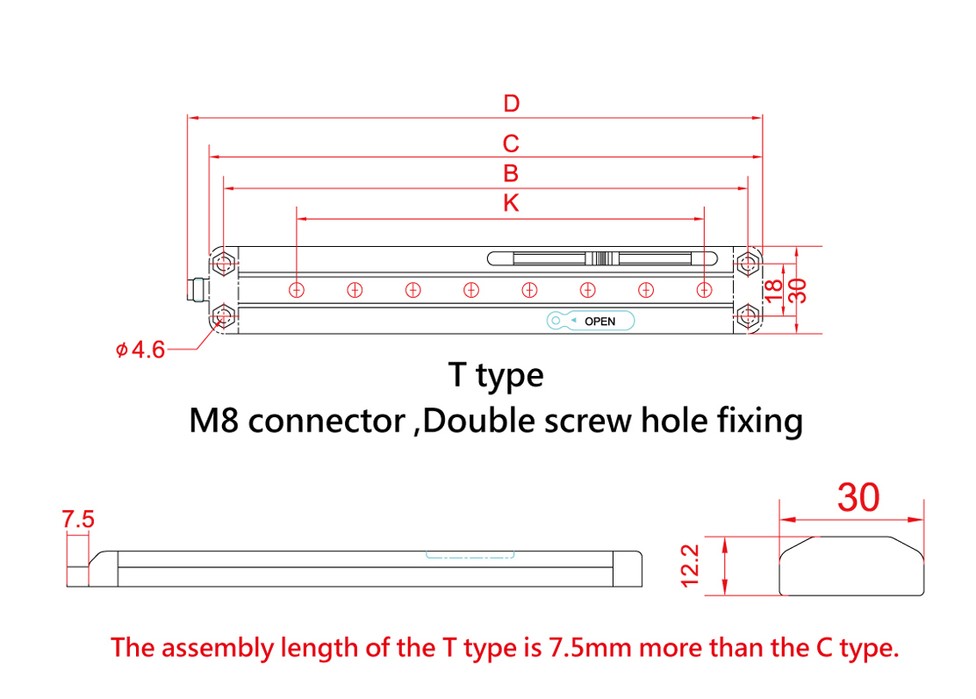

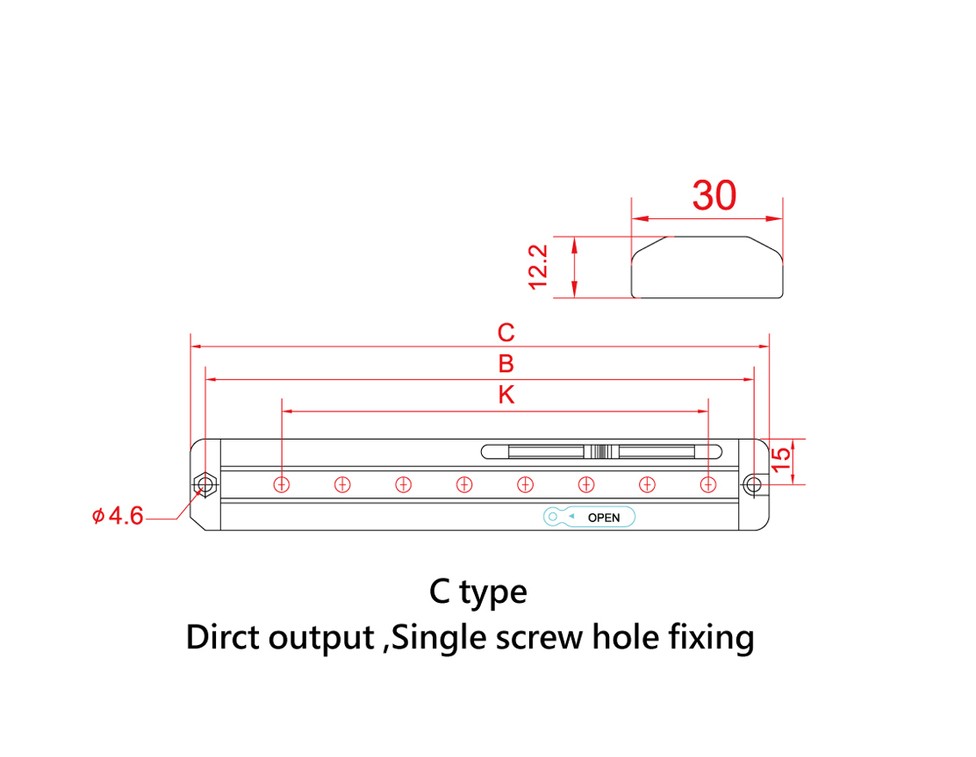

| Connector | Direct output (Single hole fixing) for C type ; M8 connector for T type | |||
| Ambient temperature | 0°C to +50°C | |||
| Enclosure rating | IP62 | |||
MA1-5 Series Detection Capability 30mm
Beam axis pitch: 25mm | Standard Operating distance: 0.5m to 3m
| Model | Beams | Detection Zone (K)(mm) | Overall Length (B)(mm) | Install Length (C)(mm) |
|---|---|---|---|---|
| MA1-5 | 5 | 100 | 130 | 140 |
MA2 Series Detection Capability 25mm
Beam axis pitch: 20mm | Standard Operating distance: 0.5m to 3m
| Model | Beams | Detection Zone (K)(mm) | Overall Length (B)(mm) | Install Length (C)(mm) |
|---|---|---|---|---|
| MA2-8 | 8 | 140 | 180 | 190 |
| MA2-12 | 12 | 220 | 260 | 270 |
| MA2-16 | 16 | 300 | 340 | 350 |
| MA2-20 | 20 | 380 | 420 | 430 |
| MA2-24 | 24 | 460 | 500 | 510 |
| MA2-28 | 28 | 540 | 580 | 590 |
| MA2-32 | 32 | 620 | 660 | 670 |
| MA2-36 | 36 | 700 | 740 | 750 |
| MA2-40 | 40 | 780 | 820 | 830 |
| MA2-44 | 44 | 860 | 900 | 910 |
| MA2-48 | 48 | 940 | 980 | 990 |
MA3 Series
Beam axis pitch: 40mm | Standard Operating distance: 0.5m to 3m
| Model | Beams | Detection Zone (K)(mm) | Overall Length (B)(mm) | Install Length (C)(mm) |
|---|---|---|---|---|
| MA3-4 | 4 | 120 | 180 | 190 |
| MA3-6 | 6 | 200 | 260 | 270 |
| MA3-8 | 8 | 280 | 340 | 350 |
| MA3-10 | 10 | 360 | 420 | 430 |
| MA3-12 | 12 | 440 | 500 | 510 |
| MA3-14 | 14 | 520 | 580 | 590 |
| MA3-16 | 16 | 600 | 660 | 670 |
| MA3-18 | 18 | 680 | 740 | 750 |
| MA3-20 | 20 | 760 | 820 | 830 |
| MA3-22 | 22 | 840 | 900 | 910 |
| MA3-24 | 24 | 920 | 980 | 990 |
