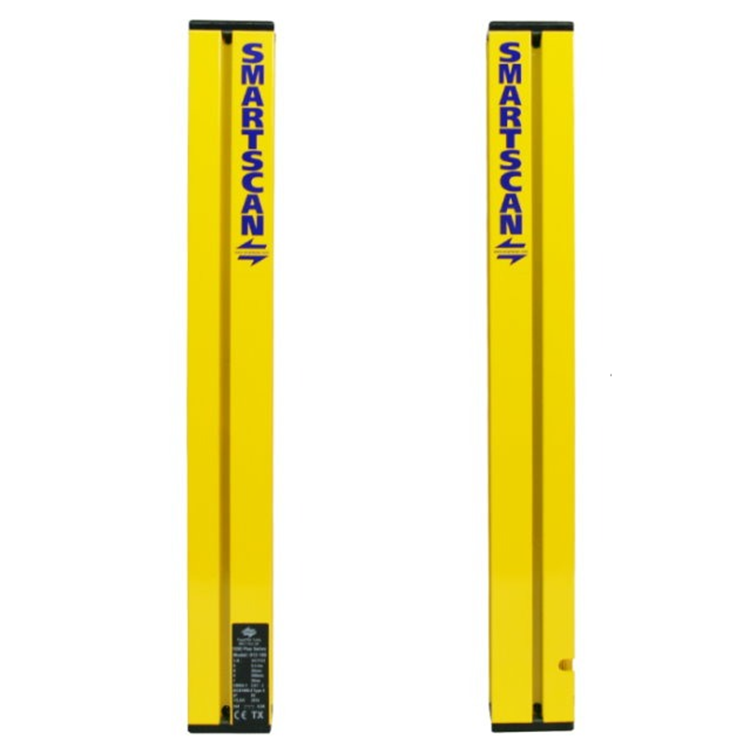

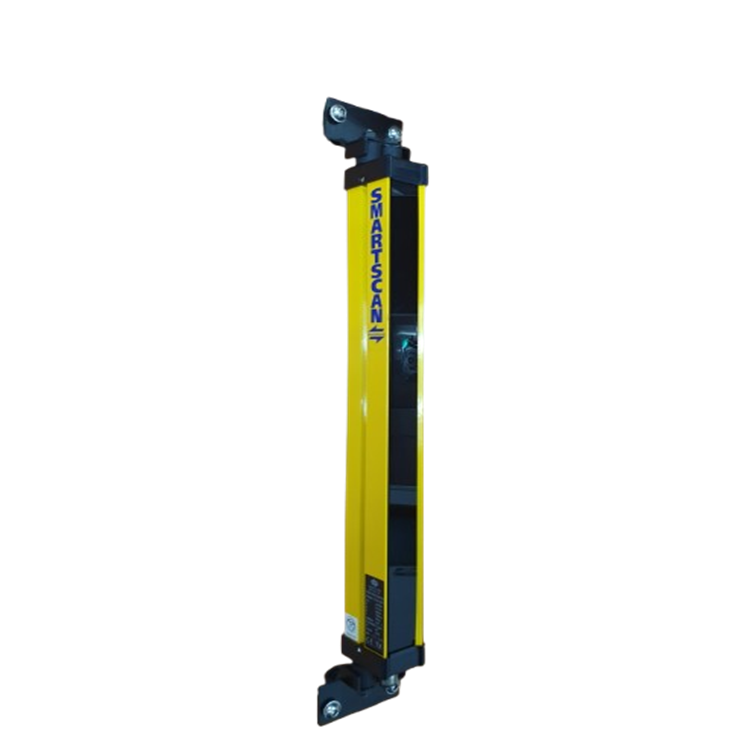

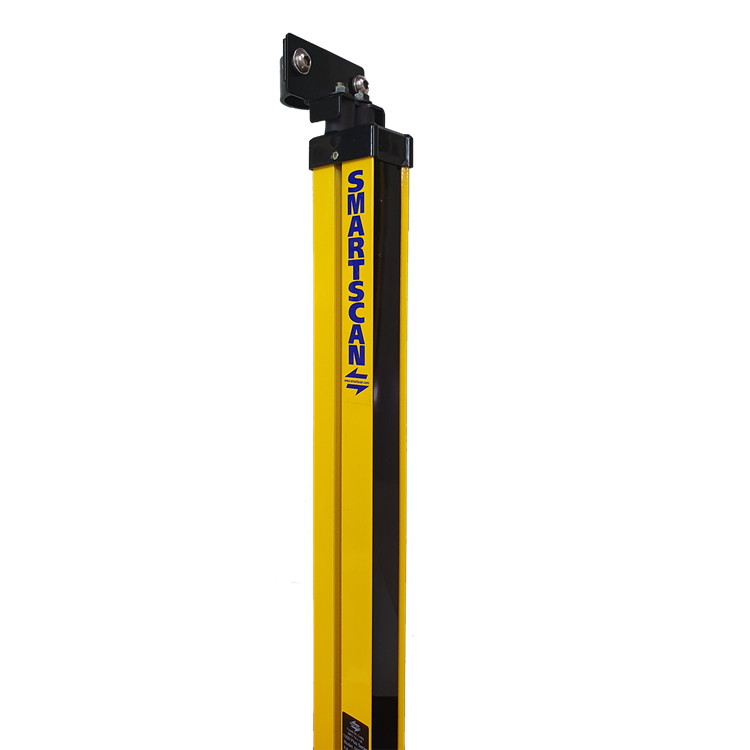

1000 Plus light curtains

Features


    The anti-seismic version is designed for stamping machinery, resistant to vibration and high rigidity
    Suitable for general machine tool industry

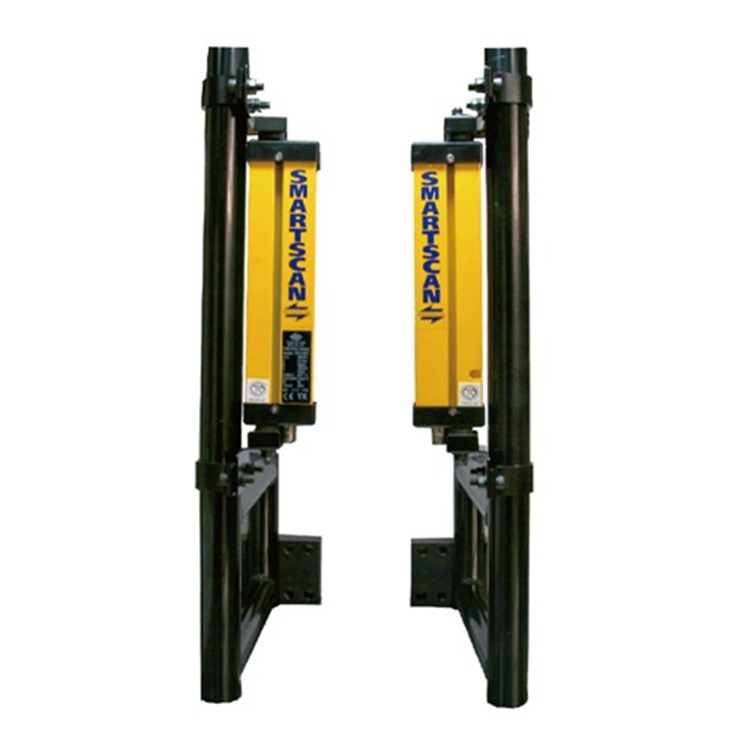

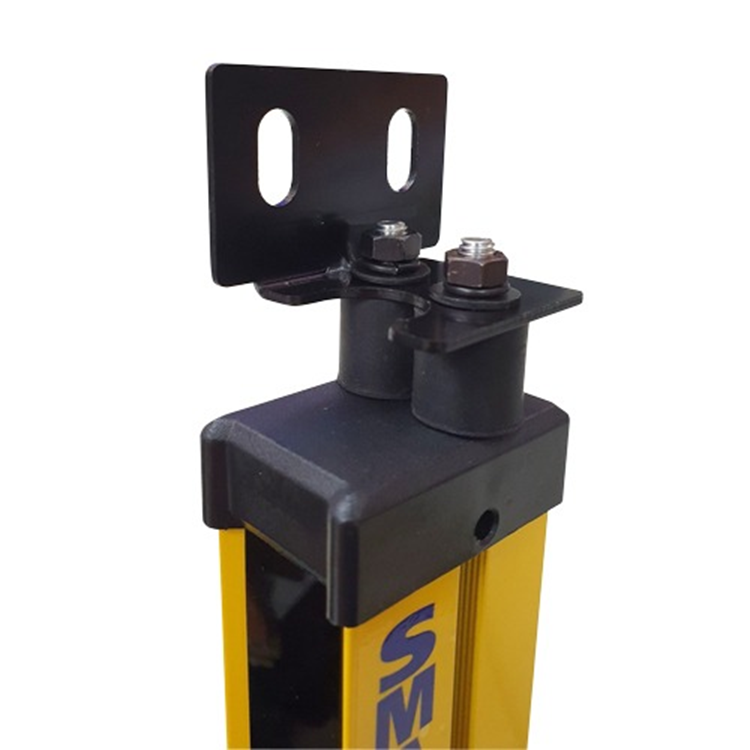

    Matched with a variety of fixing pieces and locks, suitable for various installation methods
    Ease of alignment
    With self-diagnosis function and Ease of alignment
    Simple Installation
    Wide range of models
    CE Approved
    Compliance IEC 61496-1 & IEC 61496-2

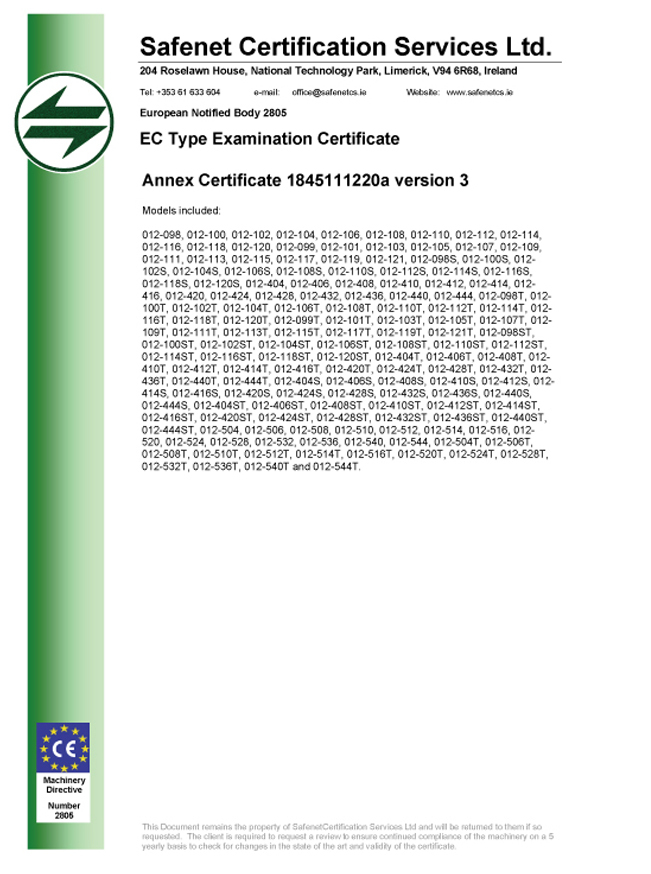

    Third Party Approved

Applications


    Mechanical / hydraulic Presses
    Robotics
    Processing Machinery
    Injection Molding Machines
    Production lines
    Textile Machinery
    Electronic Component Assembly lines
    And Many Others
Safety Light Curtains
Beam axis pitch 6 ~ 72 4 ~ 44
Detection capability 30mm 40mm 45mm 50mm
Detection zone 180mm ~ 1830mm 190mm ~ 1840mm 205mm ~ 1805mm 210mm ~ 1810mm
Operating distance 0.2m ~ 5m 4m ~ 10m 0.2m ~ 5m 4m ~ 10m
Reaction time 20msec (It does not include relay switch time)
Ambient temperature 0°C to +50°C
Enclosure rating IP65
Power supply 24VDC ± 20%, 1.5A (MAX)
Power consumption TX 200mA + RX 200mA + OSSD Output (500mA max.)
Connector Direct output (standard type) M12 connector (T type)
Appearance Aluminum, yellow coating
Classification IEC61496-1 & IEC61496-2: TYPE 2, IEC62061 SIL1 & ISO13849-1 PLc
Output mode 2 independent safety output (type: solid state PNP transistor switches 500mA@24V DC)

1000+: ODC 30/40mm R: 0.5-5m/10m

Beams Detection Capability 30mm
Operating distance 0.3m to 1m 		Detection Capability 30mm
Operating distance 0.5m to 2m 		Detection Capability 30mm
Operating distance 0.5m to 5m 		Detection Capability 40mm
Operating distance 4m to 10m 		Standard type (direct output)
Model Detection Zone (K)(mm) Model Detection Zone (K)(mm) Model Detection Zone (K)(mm) Model Detection Zone (K)(mm) Overall Length (B)(mm) Install Length (C)(mm) Assembly Length (D)(mm)
6 012-098SS 180 012-098S 180 012-098 180 012-099 190 189 224 259
12 012-100SS 330 012-100S 330 012-100 330 012-101 340 339 374 409
18 012-102SS 480 012-102S 480 012-102 480 012-103 490 489 524 559
24 012-104SS 630 012-104S 630 012-104 630 012-105 640 639 674 709
30 012-106SS 780 012-106S 780 012-106 780 012-107 790 789 824 859
36 012-108SS 930 012-108S 930 012-108 930 012-109 940 939 974 1009
42 012-110SS 1080 012-110S 1080 012-110 1080 012-111 1090 1089 1124 1159
48 012-112 1230 012-113 1240 1239 1274 1309
54 012-114 1380 012-115 1390 1389 1424 1459
60 012-116 1530 012-117 1540 1439 1574 1609
66 012-118 1680 012-119 1690 1689 1724 1759
72 012-120 1830 012-121 1840 1839 1874 1909

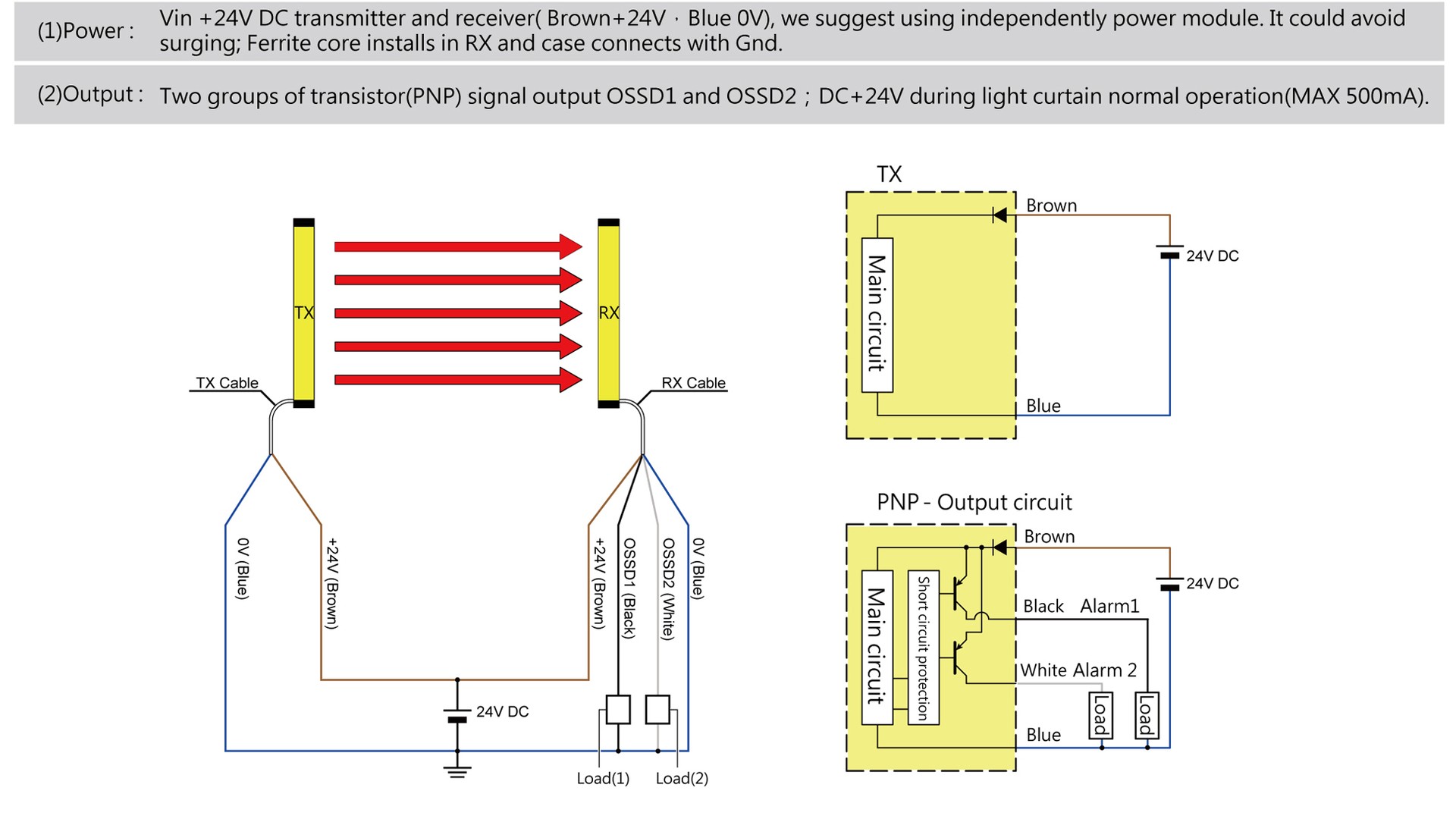

Input-Output Circuit

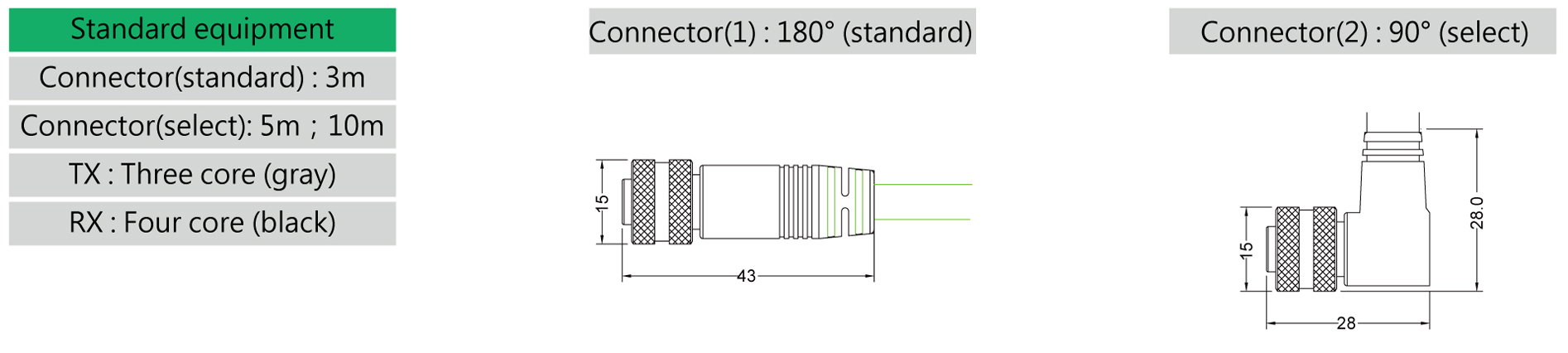

Accessories

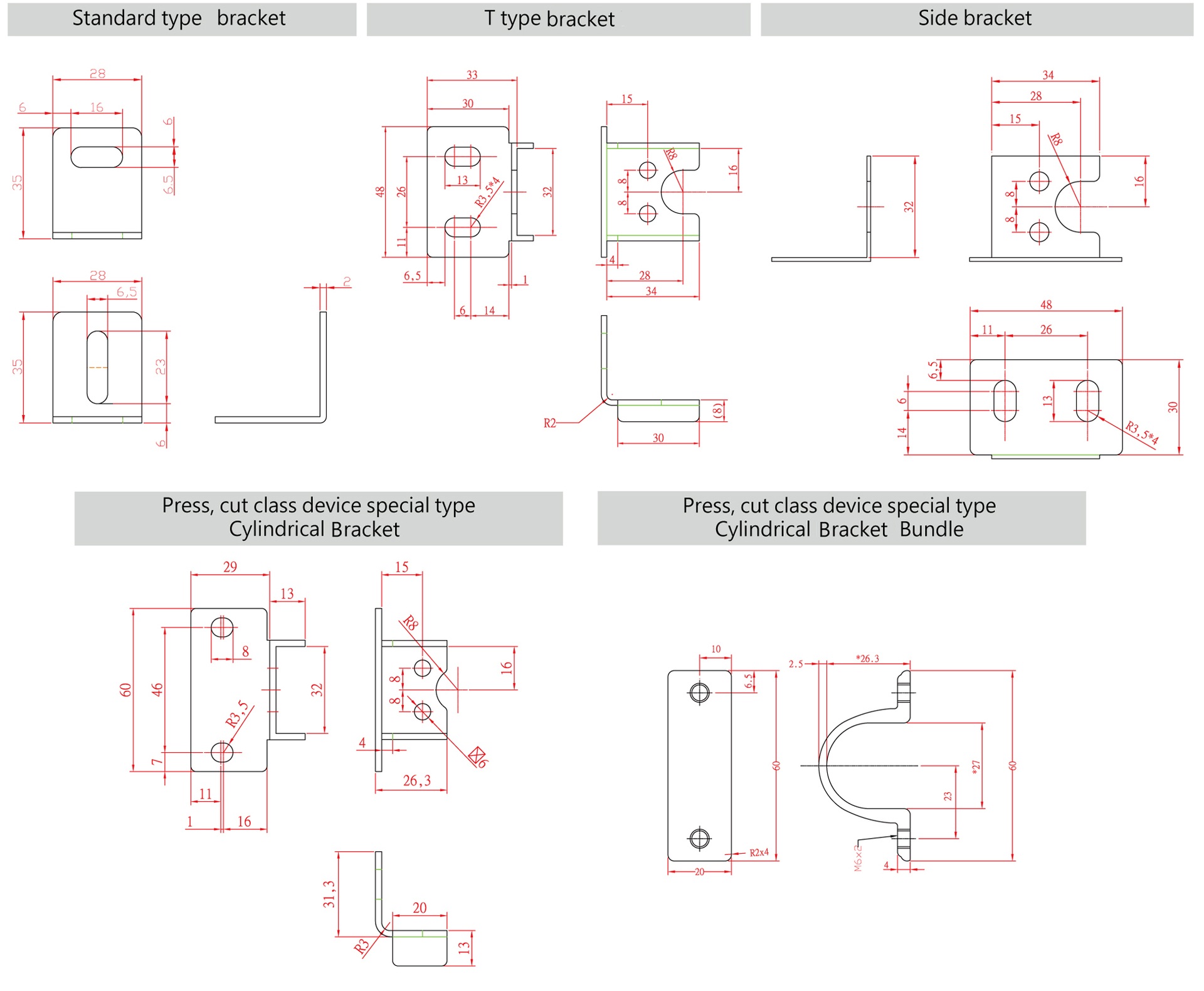

Bracket Drawing
Bracket
Bracket Drawing
Data sheet Installation Guide
